Enamelled Aluminum Wire products can be widely used for various types of motor, minitype transformer, electromagnetic winding, can fully replace enamelled round copper wire, safe and reliable product performance can be ensured, the cost can be reduced greatly.
- Transformer of microwave oven
- UPS Power Supply
- Reactor of inverter air conditioner
- Rectifier of lighting
- Filter
- Electromotive tool motor
- Washing machine motor
- Dishwasher motor
- Vacuum cleaner motor
- Fan motor
- Refrigerator compressor
- Air conditioner compressor
Enamelled Aluminum Wire Product Menu
| Description | Thermal Class | Type | Range (mm) | ANSI type | TI (℃) |
| Polyesterimide polyamideimide composite enameled round aluminum wire | ≥C | EI/AIWA | 0.10~5.10 | @ | 240 |
| Polyester(imide) polyamideimide composite enameled round aluminum wire | ≥C | JXMW35A | 0.10~5.10 | MW35A | 220 |
| Enameled round aluminum wire for refrigerating compressor | ≥C | JXMW73A | 0.10~5.10 | MW73A | 220 |
| Polyesterimide enameled round aluminum wire | ≥C | JXMW74A | 0.10~5.10 | MW74A | 200 |
| Polyester enameled round aluminum wire | H | JXMW74A | 0.10~5.10 | @ | 180 |
| Polyester enameled round aluminum wire | F | PEW/180A | 0.10~5.10 | @# | 155 |
| Polyester enameled round aluminum wire | B | PEW/155A | 0.10~5.10 | @# | 130 |
| Polyurethane enameled round aluminum wire | H | UEW/180A | 0.10~5.10 | MW83A | 180 |
| Polyurethane enameled round aluminum wire | F | UEW/155A | 0.10~5.10 | MW80A | 155 |
| Polyurethane enameled round aluminum wire | B | UEW/130A | 0.10~5.10 | MW28A | 130 |
| Self-bonding enameled round aluminum wire | C | SBEAW/200A | 0.60~1.20 | 0.10~5.10 | 200 |
| Self-bonding enameled round aluminum wire | H | SBEIW/180A | 0.10~5.10 | 0.10~5.10 | 180 |
| Self-bonding enameled round aluminum wire | F | SBUEW/155A | 0.10~5.10 | 0.10~5.10 | 155 |
240 class polyesterimide polyamideimide composite enamelled round aluminum wire
Type: EIAIW/240A, QL(ZY/XY)/240
Specification: NEMA, JIS, I EC
Propertities: Excellent resistance to heat, heat shock, abrasion and refrigerant; suitable for high speed automatic winding
Application: Used in high temperature resistance electromagnetic winding for motor
220 class polyester(imide) polyamideimide composite enamelled round aluminum wire
Type: MW35A, EIAIW/220A, QL(ZY/XY)/220
Specification: NEMA, JIS, I EC
Propertities: Excellent resistance to heat, heat shock, abrasion and refrigerant
Application: Used in transformers, electromagnetic winding for motor, lighting rectifier
Enamelled round aluminum wire for refrigerating compressor
Type: MW73A; QL(ZY/XY)-WF/220
Specification: NEMA, JIS, I EC
Propertities: The replacement of 220 class polyesterimide-polyamideimide composite and Freon-resistant round enamelled aluminum wire, its surface lubricant quantitatively controlled, and not containing wax or other materials alike. They can satisfy refrigerating compressor demand.
Application: Used in various type of motors of CFC-free refrigerator, freezer and air conditioner compressor.
200 class polyesterimide enamelled round aluminum wire
Type: MW74A, QLZY-1/2, 1EIWA, 2EIWA
Specification: NEMA, JIS, I EC
Propertities: Good resistance to chemistry, heat, solvent and plastic cut through resistant
Application: Used in various type of electromagnetic winding, minitype motor
130-180 class polyester enamelled round aluminum wire
Type: MW76A, MW24A, 1PEW, 2PEW, QLZY-1/2
Specification: NEMA, JIS, I EC
Propertities: Good performance in adhesion, high flexibility, good resistance to heat and solvent
Application: Used in various kind of industrial motors, asynchronous 3-phase motor, series motors used in washing machin, impeller, dishwasher and water heater.
130-180 class polyurethane enamelled round aluminum wire
Type: MW83A, MW80A, MW28A, 1UEW, 2UEW, QLZY-1/2
Specification: NEMA, JIS, I EC
Propertities: Can be directly soldered, Tangent Delta is low, no pinhole after being stretched and good performance under high frequency. Can be colored easily
Application: Used in fan motor of air condition, electric transformer, electric coil, relay, mini-motor, coil of high frequency electric appliance meter, etc.
Self-bonding enamelled round aluminum wire
Type: SBEAW/200A, SBEIW/180A, SBUEW/155A
Specification: NEMA, JIS, I EC
Propertities: Wire can be bonded under the condition of heating and solvent affect
Application: Used in of electromagnetic winding for motor
Typical Customers
- EMERSON
- PHILIPS
- Panasonic
- A.O.SMITH
- HuaQuan
- ACC
- Welling
- DENSO
- GMCC
- AMETEK

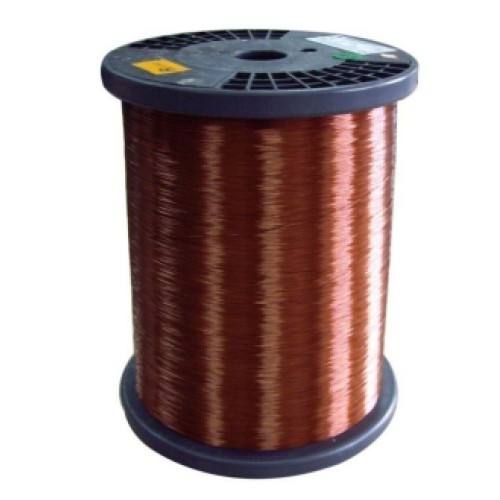

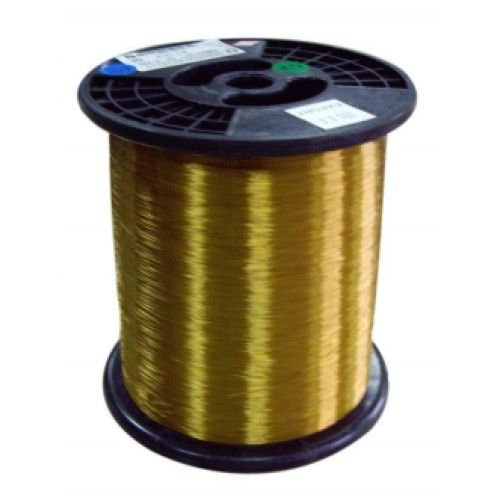

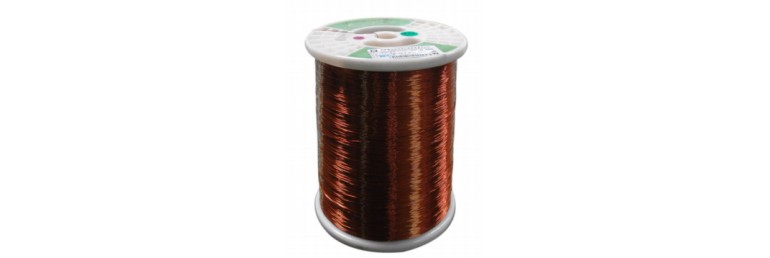

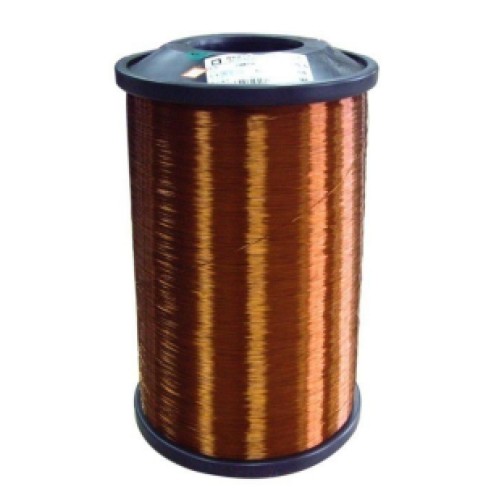

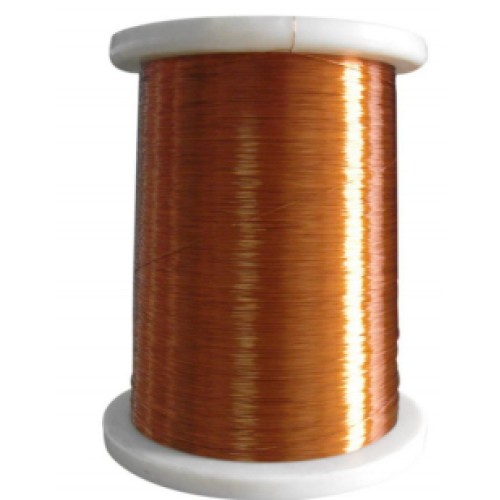

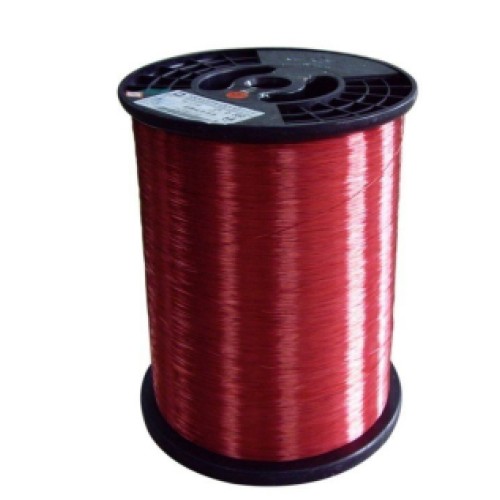

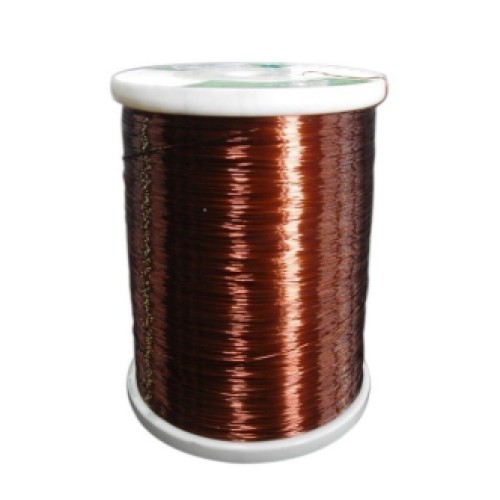

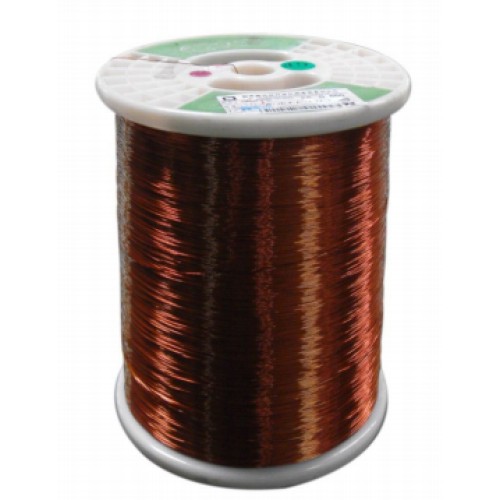

Enamelled Aluminum Wire
- Product Code: chinshare-eaw-001
- Availability: In Stock
- Port: Guangzhou, Shanghai, Qingdao
- Payment Terms: T/T, Western Union, Paypal
- E-mail: market@chinshare.com
- Tel.: +86-13778148181
- Fax.: +86-816-6384589
